Creates Gelman plots for a gemtc or bnma model.

Usage

gelman_plots(gelman_data, parameters)

Arguments

gelman_data: List of outputs from gelman_preplot
parameters: Vector of parameters mentioned in the previous argument.

Value

List of ggplot Gelman plots

Examples

configured_data_path <- system.file("extdata", "configured_data.Rds", package = "metainsight")
configured_data <- readRDS(configured_data_path)

# n_adapt and n_iter are set low to run quickly, but should be left as the
# default values in real use

fitted_bayes_model <- bayes_model(configured_data = configured_data,
                                  n_adapt = 100,
                                  n_iter = 100)

mcmc <- bayes_mcmc(model = fitted_bayes_model)

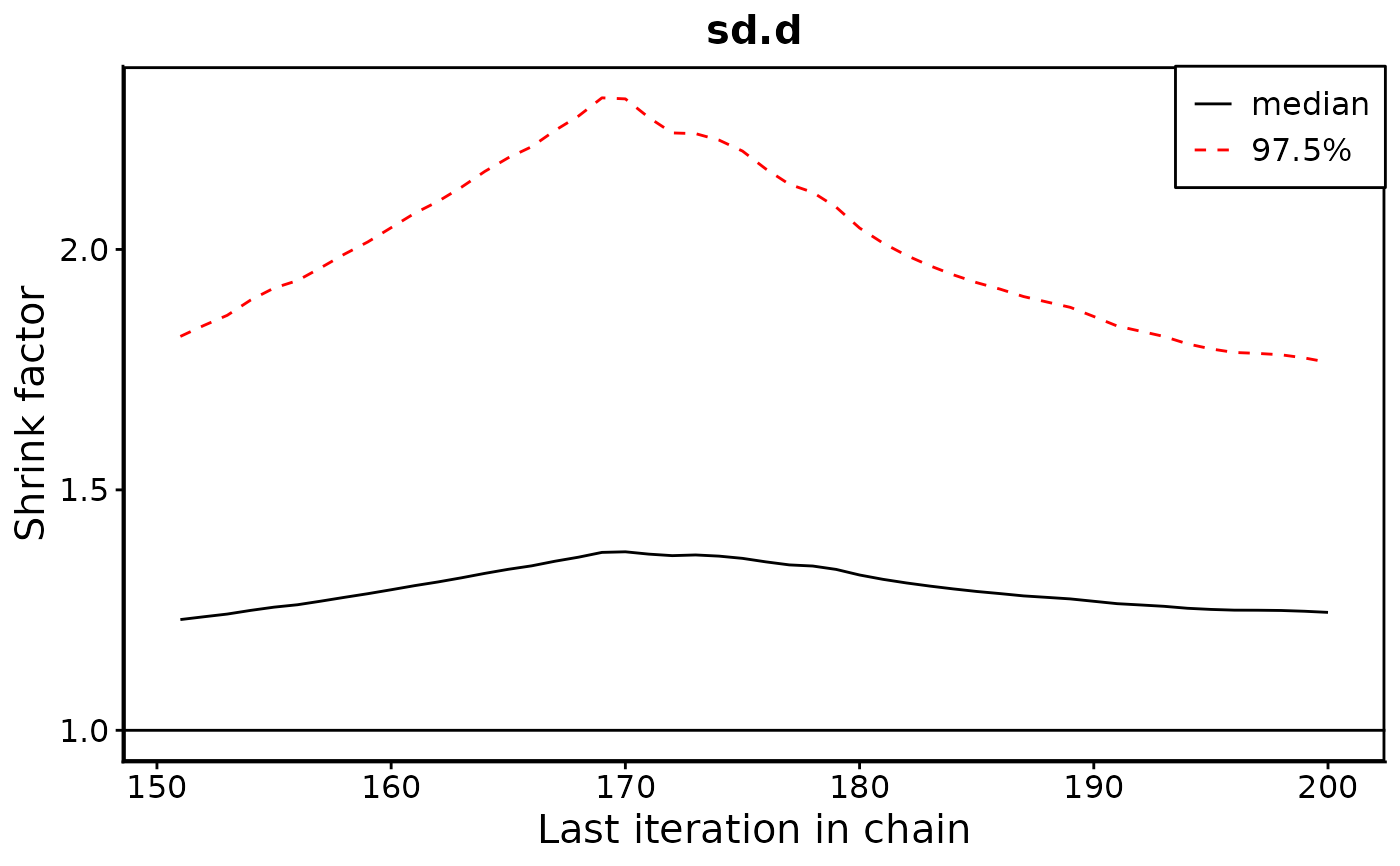

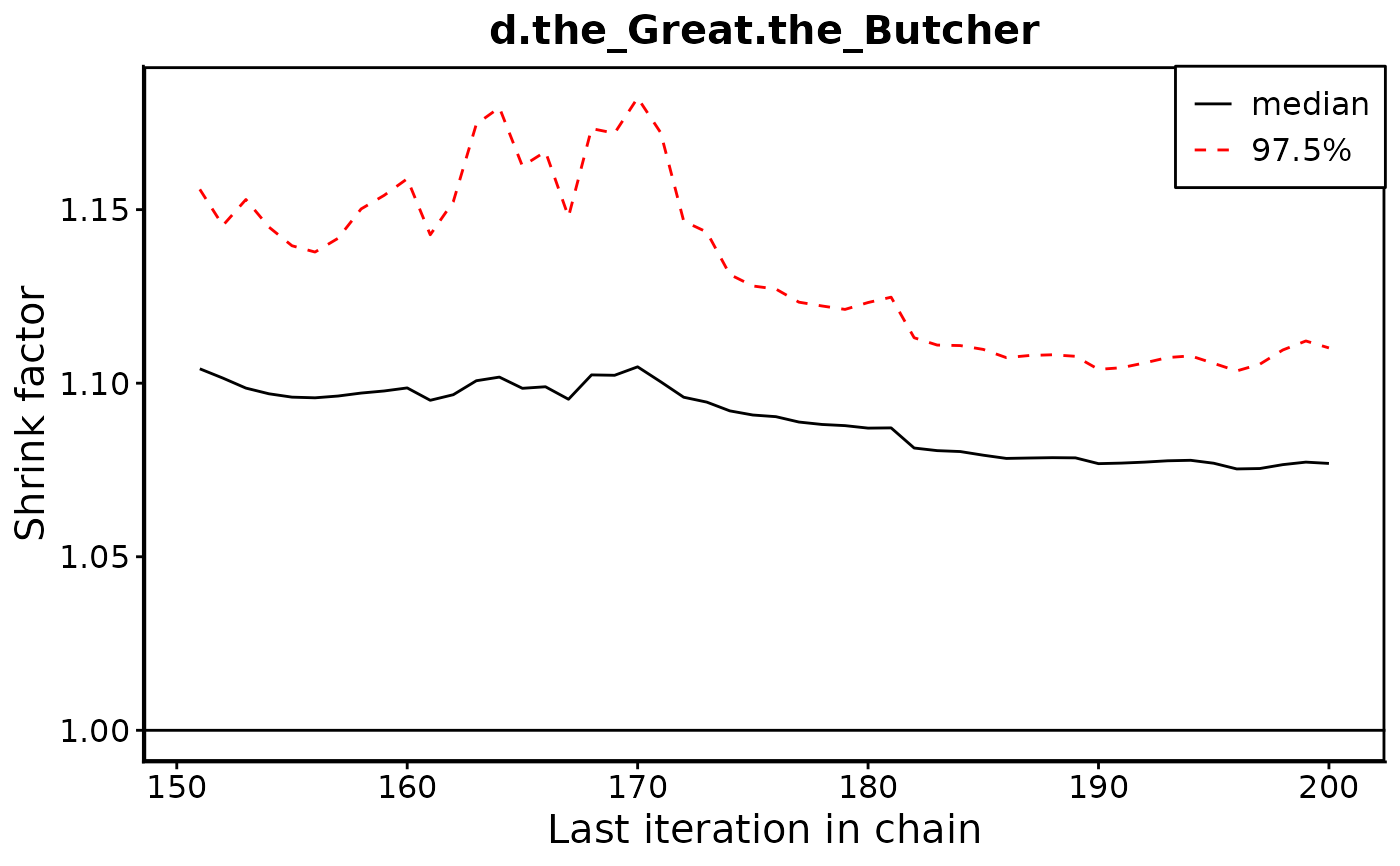

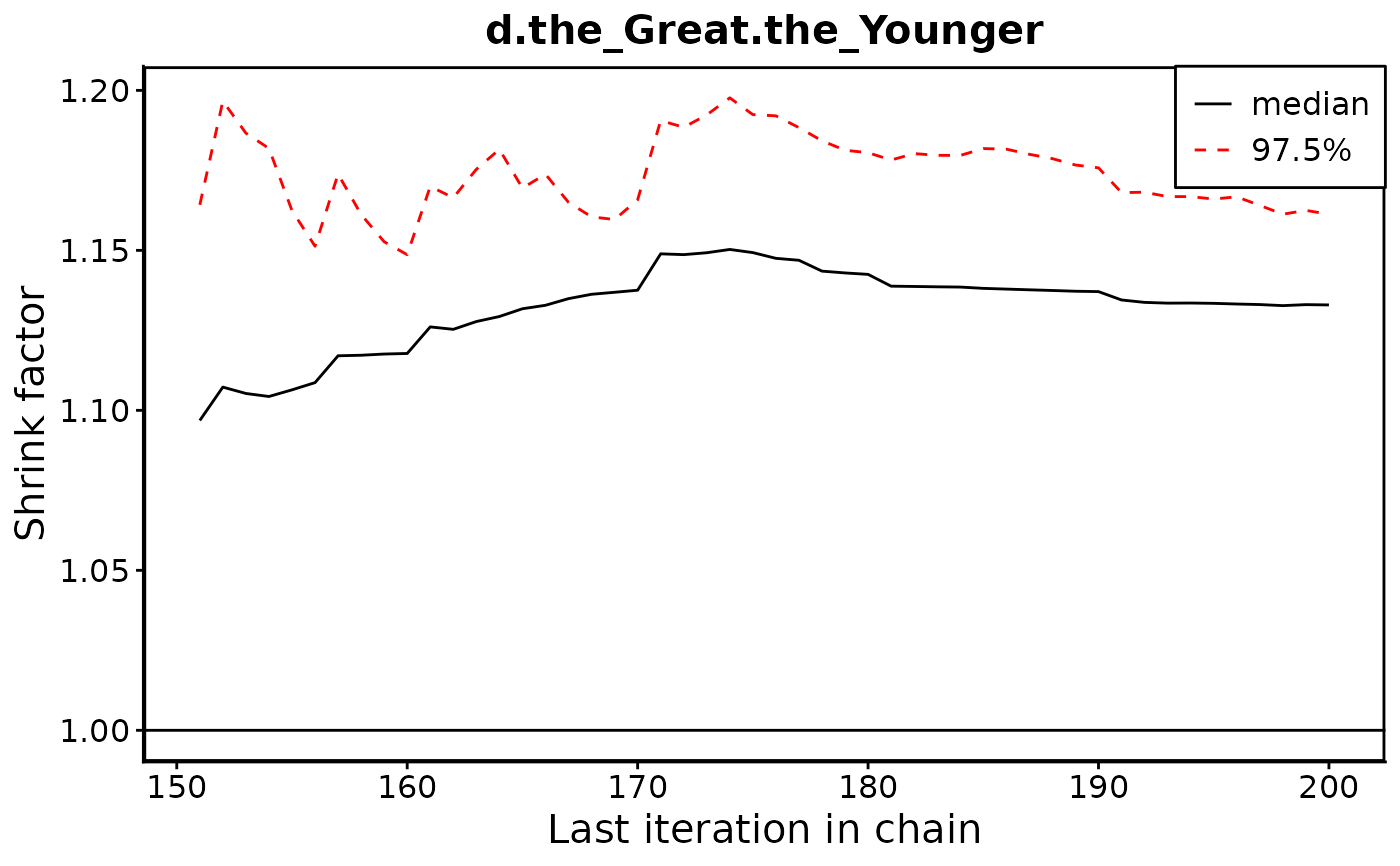

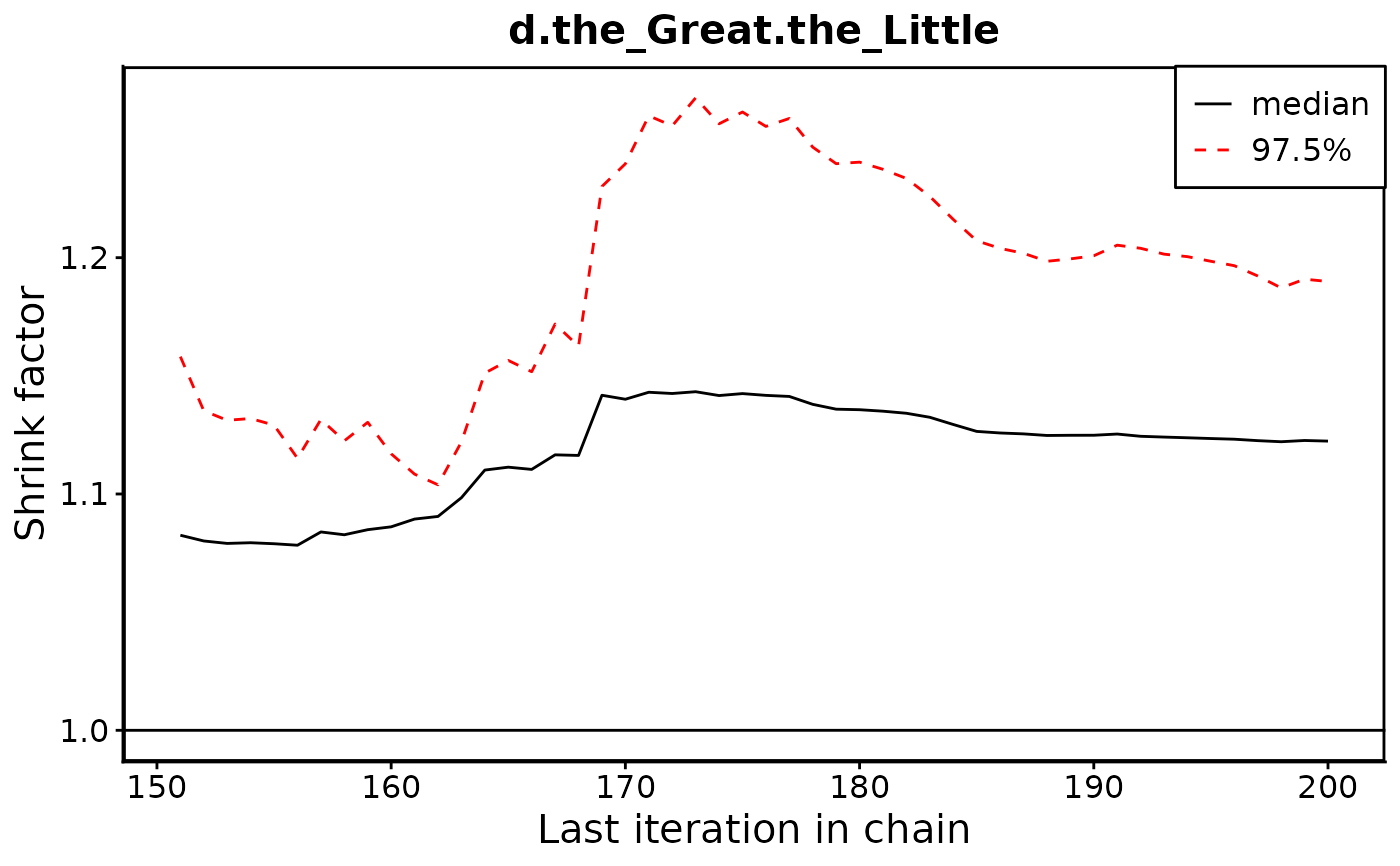

gelman_plots(mcmc$gelman_data, mcmc$parameters)
#> [[1]]

#>
#> [[2]]

#>
#> [[3]]

#>
#> [[4]]

#>
